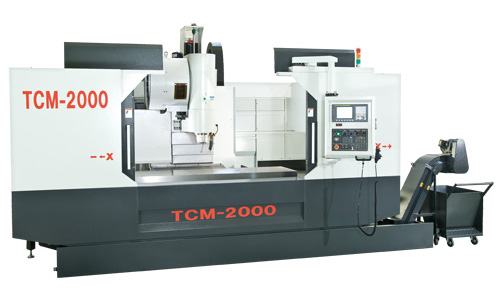

Travelling Column Machine

Product Description

Product Name:

Travelling Column Machine

Model:

TCM-2000 / TCM-3000

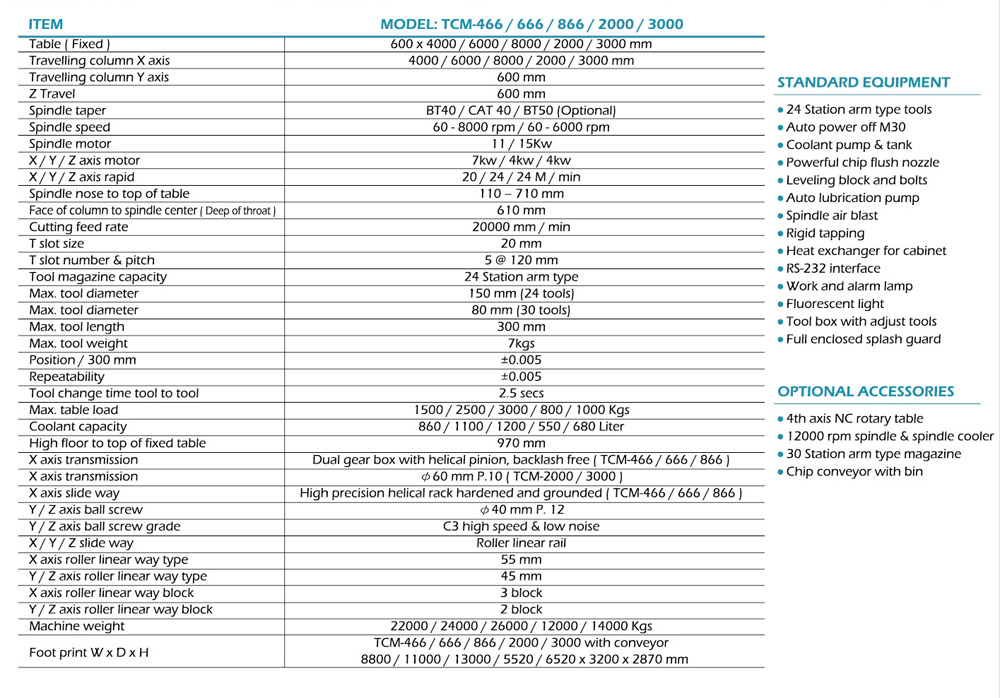

Detail Specifications

TCM-2000 (TCM-3000)
Worktable: 600 x 2000mm (600 x 3000mm)
X-axis travel: 2000mm (3000mm)
Y/Z travel: 600mm/600mm
X/Y/Z-axis slide-way: Linear scale (roller-type)
X-axis: With 60mm dia. precision ball screw
Y/Z-axis transmission: 40mm dia., high-speed, low-noise ball screw
X/Y/Z-axis feed rate: 20/24/24m/min
Spindle: BT40/8000rpm (12,000rpm optional)
