1.

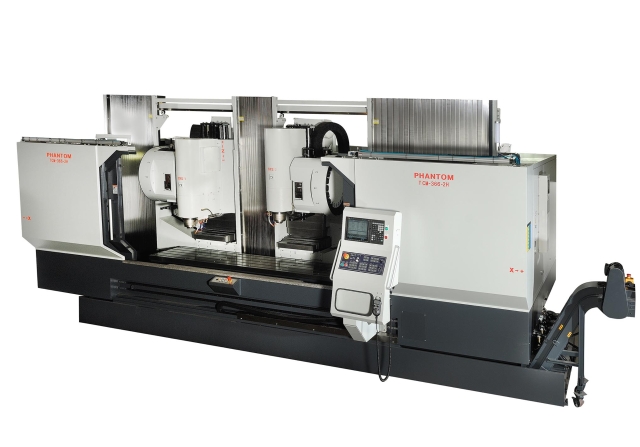

Dual Spindle & System Travelling Column Machine
Model: TCM-366-2H
Dual spindle

Dual system

Table length from 3M – 8M

Table width 600 mm or 800 mm

Can be processed separately

Auto door OP.

2.

Travelling Column Machine

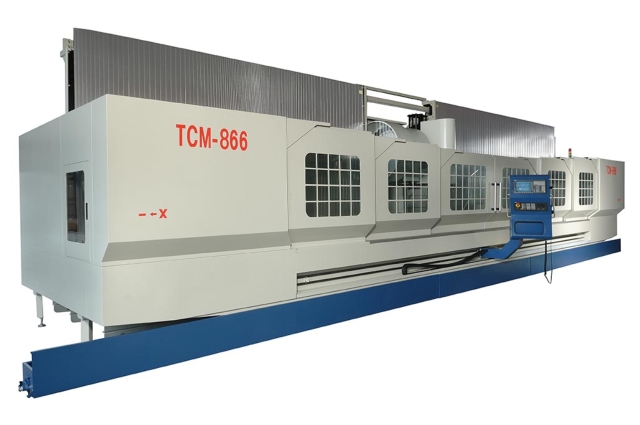

Model: TCM-866

3.

Travelling Column Machine

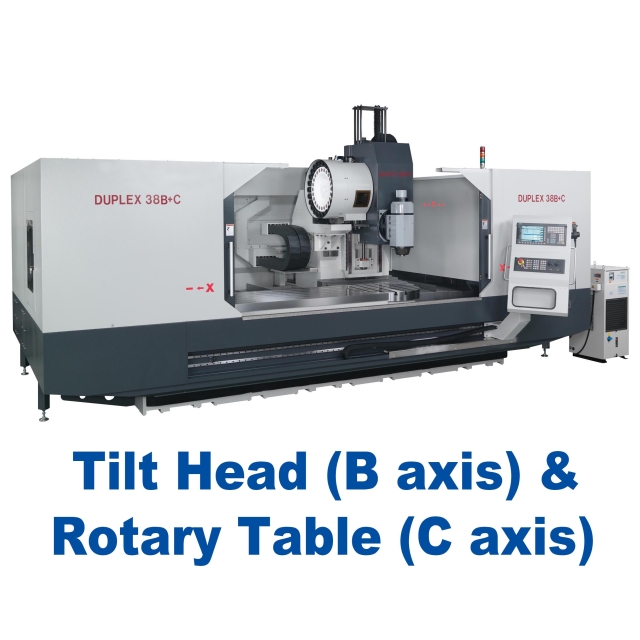

Model: DUPLEX 38B+C
Tilt Head ( B axis ) & Rotary Table ( C axis )

• Built-in high-speed spindle with tilt head (B axis) is a processing tool.

• Choice with C-axis t... (Read more)

4.

Travelling Column Machine

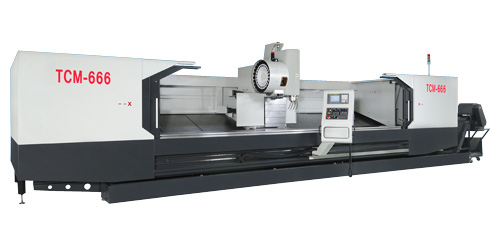

Model: TCM-666 / TCM-466 / TCM-866
TCM-666 (TCM-466, TCM-866)

Worktable: 600 x 6000mm (600 x 4000mm, 600 x 8000mm)

X-axis travel: 6000mm (4000mm, 8000mm)

Y/Z-axis travel: 600mm/600m... (Read more)

5.

Travelling Column Machine

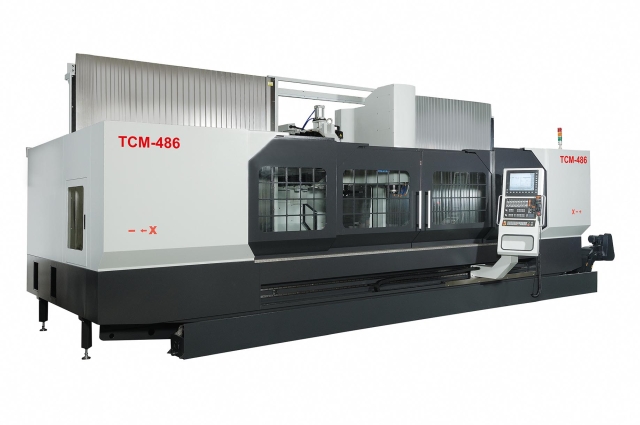

Model: TCM-466 / 486 / 666 / 686 / 866 / 886
• Spindle can be choice with BT50 with 6000 rpm belt drive (OP.)

• BT40 12000 rpm and BT50 8000 rpm belt drive with chiller (OP.)

• BT40 & BT50 als... (Read more)

6.

Travelling Column Machine

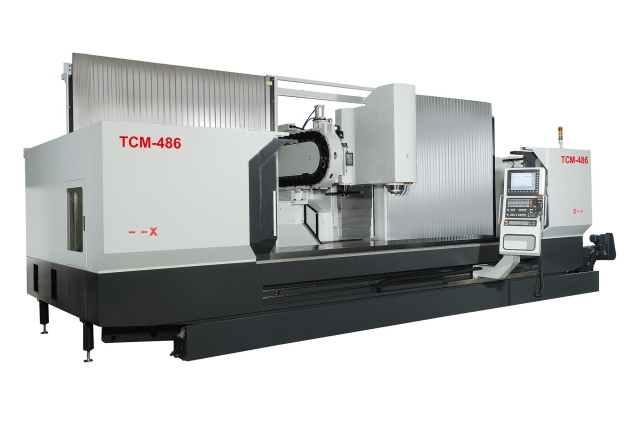

Model: TCM-466 / 486 / 666 / 686 / 866 / 886
• Spindle can be choice with BT50 with 6000 rpm belt drive (OP.)

• BT40 12000 rpm and BT50 8000 rpm belt drive with chiller (OP.)

• BT40 & BT50 als... (Read more)

7.

Travelling Column Machine

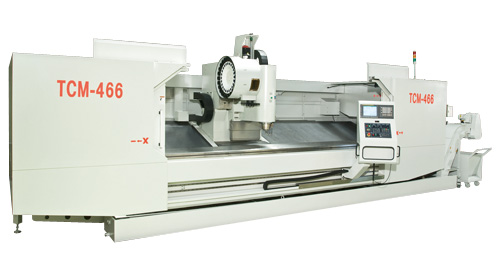

Model: TCM-466 / TCM-666 / TCM-866
TCM-466 (TCM-666, TCM-866)

Worktable: 600 x 4000mm (600 x 6000mm, 600 x 8000mm)

X-axis travel: 4000mm (6000mm, 8000mm)

Y/Z-axis travel: 600mm/600m... (Read more)

8.

Travelling Column Machine
Model: TCM-366
BT50 spindle, full guarding with top cover

9.

Travelling Column Machine
Model: TCM-366
Full enclosed guarding with top cover

10.

Travelling Column Machine
Model: TCM-266 / 286 / 366 / 386
• X axis is equipped with diameter 63 mm precision ball screw grade: C3.

• Y & Z axis are with high-speed precision and low noise ball screw dia. 4... (Read more)

11.

Travelling Column Machine
Model: TCM-266 / 286 / 366 / 386
• X axis is equipped with diameter 63 mm precision ball screw grade: C3.

• Y & Z axis are with high-speed precision and low noise ball screw dia. 4... (Read more)

12.

Travelling Column Machine
Model: TCM-244 / 344 / 444 / 644
• X axis transmission by ball screw dia. 63 mm.

• Y / Z axis transmission by ball screw dia. 40 mm.

• CTS 20 bar available (OP.)

• Control system ... (Read more)

13.

Travelling Column Machine
Model: TCM-244 / 344 / 444 / 644
• X axis transmission by ball screw dia. 63 mm.

• Y / Z axis transmission by ball screw dia. 40 mm.

• CTS 20 bar available (OP.)

• Control system ... (Read more)

14.

Travelling Column Machine
Model: TCM-2000 / TCM-3000
TCM-2000 (TCM-3000)

Worktable: 600 x 2000mm (600 x 3000mm)

X-axis travel: 2000mm (3000mm)

Y/Z travel: 600mm/600mm

X/Y/Z-axis slide-way: Linear sc... (Read more)

15.

Travelling Column Machine
Model: TCM-3000 / TCM-2000
TCM-3000 (TCM-2000)

Worktable: 600 x 3000mm (600 x 2000mm)

X-axis travel: 3000mm (2000mm)

Y/Z travel: 600mm/600mm

X/Y/Z-axis slide-way: Linear sc... (Read more)
